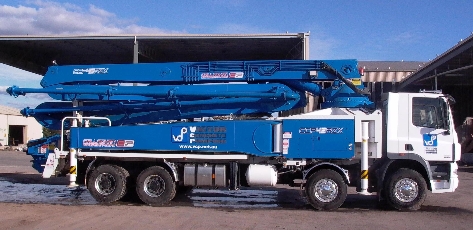

45 Metre Boom Specifications

 Vertical reach

44,3 m

 Horizontal reach

40,5 m

 Maximum output

170 m3/h

 Boom specifications:

 Vertical reach

44,3 m

 Horizontal reach

40,5 m

 Reach from front of truck

37,6 m

 Unfolding height

8,6 m

 Section articulation

90/180/225/180/245¡Æ

 Rotation

370¡Æ

 Delivery boom

125 mm

 End hose length

4 m

 Outrigger spread-front

8,85 m

 Outrigger spread-rear

9,9 m

 Max. outrigger weight

28.000 kg

 Pump specification:

 Maximum output

170 ¬Þm3/h

 Concrete cylinder

¨ª230 mm x ¨ª2100 mm

 Stroker per minute

32

 Concrete pressure

72 bar

 Hopper capacity

0,6 m3

 S-tube

¨ª200 mm x ¨ª180 mm

 Hydraulic pump

Kawasaki K3V140DT

Rexroth A11VO260

 Max. aggregate size

60 mm (2¨ö ")

 Water reservoir

500 l

 Water pump with rust protection
